Spring MVC CRUD示例

spring mvc crud示例



crud(创建，读取，更新和删除)应用程序是用于创建任何项目的最重要的应用程序。它提供了开发大型项目的想法。在springmvc中，我们可以开发一个简单的crud应用程序。

在这里，我们使用 jdbctemplate 进行数据库交互。



创建一个表

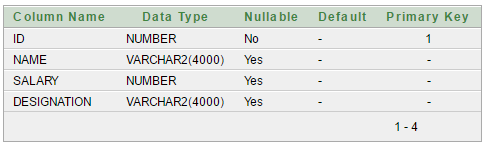

在这里，我们使用的是mysql数据库中存在的emp99表。它具有4个字段: id，名称，薪水和名称。

spring mvc crud示例



spring mvc crud示例



1、将依赖项添加到pom.xml文件。

pom.xml

 <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
<dependency>
    <groupid>org.springframework</groupid>
    <artifactid>spring-webmvc</artifactid>
    <version>5.1.1.release</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.apache.tomcat/tomcat-jasper -->
<dependency>
    <groupid>org.apache.tomcat</groupid>
    <artifactid>tomcat-jasper</artifactid>
    <version>9.0.12</version>
</dependency>
    <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
<dependency>
    <groupid>javax.servlet</groupid>
    <artifactid>servlet-api</artifactid>
    <version>3.0-alpha-1</version>
</dependency>
<!-- https://mvnrepository.com/artifact/javax.servlet/jstl -->
<dependency>
    <groupid>javax.servlet</groupid>
    <artifactid>jstl</artifactid>
    <version>1.2</version>
</dependency>
    <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
<dependency>
    <groupid>mysql</groupid>
    <artifactid>mysql-connector-java</artifactid>
    <version>8.0.11</version>
</dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
<dependency>
    <groupid>org.springframework</groupid>
    <artifactid>spring-jdbc</artifactid>
    <version>5.1.1.release</version>
</dependency>



2、创建bean类

在这里，bean类包含对应于数据库中存在的字段的变量(以及setter和getter方法)。

emp.java

package com.yapf.beans;

public class emp {
private int id;
private string name;
private float salary;
private string designation;

public int getid() {
    return id;
}
public void setid(int id) {
    this.id = id;
}
public string getname() {
    return name;
}
public void setname(string name) {
    this.name = name;
}
public float getsalary() {
    return salary;
}
public void setsalary(float salary) {
    this.salary = salary;
}
public string getdesignation() {
    return designation;
}
public void setdesignation(string designation) {
    this.designation = designation;
}

}



3、创建控制器类

empcontroller.java

package com.yapf.controllers;
import java.util.list;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.stereotype.controller;
import org.springframework.ui.model;
import org.springframework.web.bind.annotation.modelattribute;
import org.springframework.web.bind.annotation.pathvariable;
import org.springframework.web.bind.annotation.requestmapping;
import org.springframework.web.bind.annotation.requestmethod;
import com.yapf.beans.emp;
import com.yapf.dao.empdao;
@controller
public class empcontroller {
    @autowired
    empdao dao;//will inject dao from xml file

    /*it displays a form to input data, here "command" is a reserved request attribute
     *which is used to display object data into form
     */
    @requestmapping("/empform")
    public string showform(model m){
        m.addattribute("command", new emp());
        return "empform";
    }
    /*it saves object into database. the @modelattribute puts request data
     *  into model object. you need to mention requestmethod.post method
     *  because default request is get*/
    @requestmapping(value="/save",method = requestmethod.post)
    public string save(@modelattribute("emp") emp emp){
        dao.save(emp);
        return "redirect:/viewemp";//will redirect to viewemp request mapping
    }
    /* it provides list of employees in model object */
    @requestmapping("/viewemp")
    public string viewemp(model m){
        list<emp> list=dao.getemployees();
        m.addattribute("list",list);
        return "viewemp";
    }
    /* it displays object data into form for the given id.
     * the @pathvariable puts url data into variable.*/
    @requestmapping(value="/editemp/{id}")
    public string edit(@pathvariable int id, model m){
        emp emp=dao.getempbyid(id);
        m.addattribute("command",emp);
        return "empeditform";
    }
    /* it updates model object. */
    @requestmapping(value="/editsave",method = requestmethod.post)
    public string editsave(@modelattribute("emp") emp emp){
        dao.update(emp);
        return "redirect:/viewemp";
    }
    /* it deletes record for the given id in url and redirects to /viewemp */
    @requestmapping(value="/deleteemp/{id}",method = requestmethod.get)
    public string delete(@pathvariable int id){
        dao.delete(id);
        return "redirect:/viewemp";
    }
}



4、创建dao类

让我们创建一个dao类以访问数据库中所需的数据。

empdao.java

package com.yapf.dao;
import java.sql.resultset;
import java.sql.sqlexception;
import java.util.list;
import org.springframework.jdbc.core.beanpropertyrowmapper;
import org.springframework.jdbc.core.jdbctemplate;
import org.springframework.jdbc.core.rowmapper;
import com.yapf.beans.emp;

public class empdao {
jdbctemplate template;

public void settemplate(jdbctemplate template) {
    this.template = template;
}
public int save(emp p){
    string sql="insert into emp99(name,salary,designation) values('"+p.getname()+"',"+p.getsalary()+",'"+p.getdesignation()+"')";
    return template.update(sql);
}
public int update(emp p){
    string sql="update emp99 set name='"+p.getname()+"', salary="+p.getsalary()+",designation='"+p.getdesignation()+"' where id="+p.getid()+"";
    return template.update(sql);
}
public int delete(int id){
    string sql="delete from emp99 where id="+id+"";
    return template.update(sql);
}
public emp getempbyid(int id){
    string sql="select * from emp99 where id=?";
    return template.queryforobject(sql, new object[]{id},new beanpropertyrowmapper<emp>(emp.class));
}
public list<emp> getemployees(){
    return template.query("select * from emp99",new rowmapper<emp>(){
        public emp maprow(resultset rs, int row) throws sqlexception {
            emp e=new emp();
            e.setid(rs.getint(1));
            e.setname(rs.getstring(2));
            e.setsalary(rs.getfloat(3));
            e.setdesignation(rs.getstring(4));
            return e;
        }
    });
}
}



5、在web.xml文件中提供控制器的条目

web.xml

<?xml version="1.0" encoding="utf-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemalocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="webapp_id" version="3.0">
  <display-name>springmvc</display-name>
   <servlet>
    <servlet-name>spring</servlet-name>
    <servlet-class>org.springframework.web.servlet.dispatcherservlet</servlet-class>
    <load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
    <servlet-name>spring</servlet-name>
    <url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>



6、在xml文件中定义bean

spring-servlet.xml

<?xml version="1.0" encoding="utf-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemalocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd">
<context:component-scan base-package="com.yapf.controllers"></context:component-scan>

<bean class="org.springframework.web.servlet.view.internalresourceviewresolver">
<property name="prefix" value="/web-inf/jsp/"></property>
<property name="suffix" value=".jsp"></property>
</bean>

<bean id="ds" class="org.springframework.jdbc.datasource.drivermanagerdatasource">
<property name="driverclassname" value="com.mysql.jdbc.driver"></property>
<property name="url" value="jdbc:mysql://localhost:3306/test"></property>
<property name="username" value=""></property>
<property name="password" value=""></property>
</bean>

<bean id="jt" class="org.springframework.jdbc.core.jdbctemplate">
<property name="datasource" ref="ds"></property>
</bean>

<bean id="dao" class="com.yapf.dao.empdao">
<property name="template" ref="jt"></property>
</bean>
</beans>



7、创建请求的页面

index.jsp

<a href="empform">add employee</a>
<a href="viewemp">view employees</a>



8、创建其他视图组件

empform.jsp

<%@ taglib uri="http://www.springframework.org/tags/form" prefix="form"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
        <h1>add new employee</h1>
       <form:form method="post" action="save">
        <table >
         <tr>
          <td>name : </td>
          <td><form:input path="name"  /></td>
         </tr>
         <tr>
          <td>salary :</td>
          <td><form:input path="salary" /></td>
         </tr>
         <tr>
          <td>designation :</td>
          <td><form:input path="designation" /></td>
         </tr>
         <tr>
          <td> </td>
          <td><input type="submit" value="save" /></td>
         </tr>
        </table>
       </form:form>

empeditform.jsp

此处"/springmvccrudsimple"是项目名称，如果您使用其他项目名称，请更改此名称。对于实时应用程序，您可以提供完整的url。

<%@ taglib uri="http://www.springframework.org/tags/form" prefix="form"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
        <h1>edit employee</h1>
       <form:form method="post" action="/springmvccrudsimple/editsave">
        <table >
        <tr>
        <td></td>
         <td><form:hidden  path="id" /></td>
         </tr>
         <tr>
          <td>name : </td>
          <td><form:input path="name"  /></td>
         </tr>
         <tr>
          <td>salary :</td>
          <td><form:input path="salary" /></td>
         </tr>
         <tr>
          <td>designation :</td>
          <td><form:input path="designation" /></td>
         </tr>

         <tr>
          <td> </td>
          <td><input type="submit" value="edit save" /></td>
         </tr>
        </table>
       </form:form>

viewemp.jsp

    <%@ taglib uri="http://www.springframework.org/tags/form" prefix="form"%>
    <%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
    <h1>employees list</h1>
    <table border="2" width="70%" cellpadding="2">
    <tr><th>id</th><th>name</th><th>salary</th><th>designation</th><th>edit</th><th>delete</th></tr>
    <c:foreach var="emp" items="${list}">
    <tr>
    <td>${emp.id}</td>
    <td>${emp.name}</td>
    <td>${emp.salary}</td>
    <td>${emp.designation}</td>
    <td><a href="editemp/${emp.id}">edit</a></td>
    <td><a href="deleteemp/${emp.id}">delete</a></td>
    </tr>
    </c:foreach>
    </table>
    <br/>
    <a href="empform">add new employee</a>

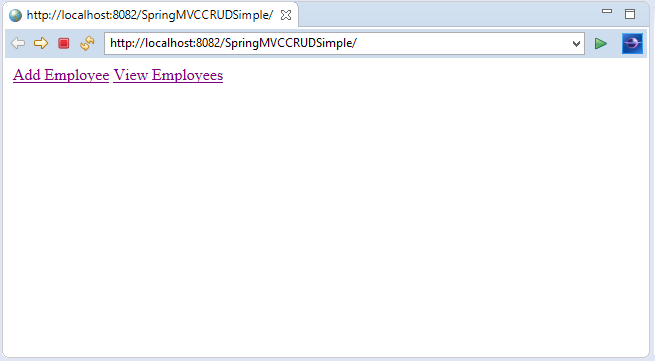

输出:

spring mvc crud示例

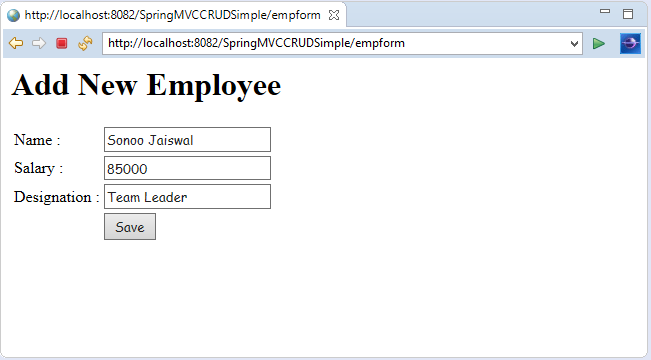

点击 添加员工时，您将看到以下表格。

spring mvc crud示例

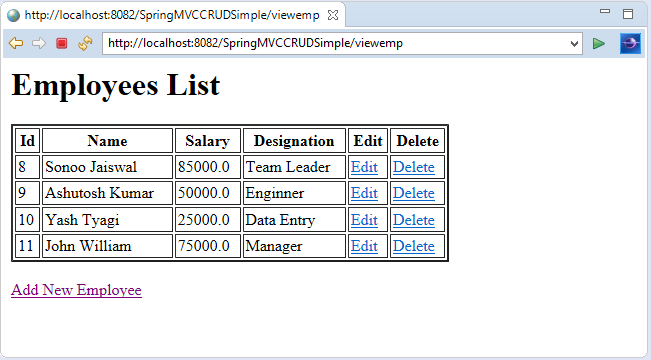

填写表格，然后 单击保存以将条目添加到数据库中。

spring mvc crud示例

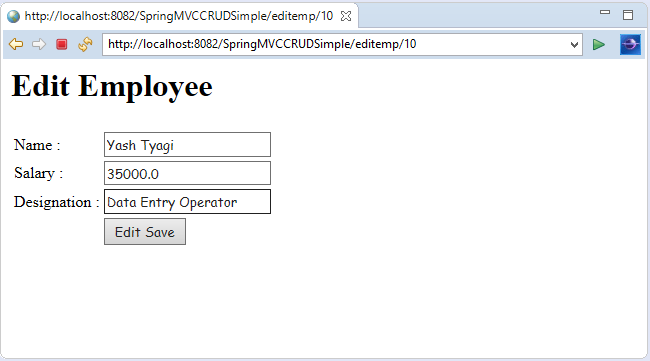

现在，点击 编辑以对提供的内容进行一些更改数据。

spring mvc crud示例

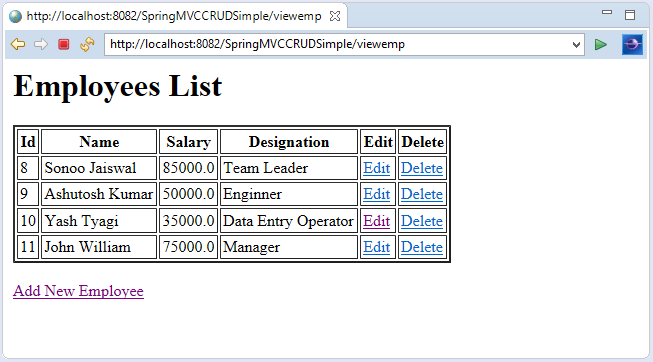

现在，单击 编辑保存，将具有更改的条目添加到数据库中。

spring mvc crud示例

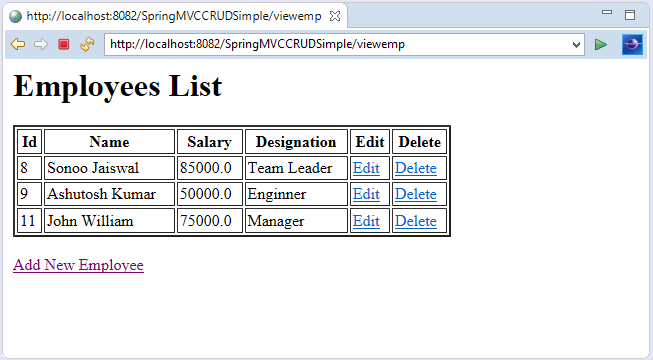

现在，单击 删除从数据库中删除条目。

spring mvc crud示例
